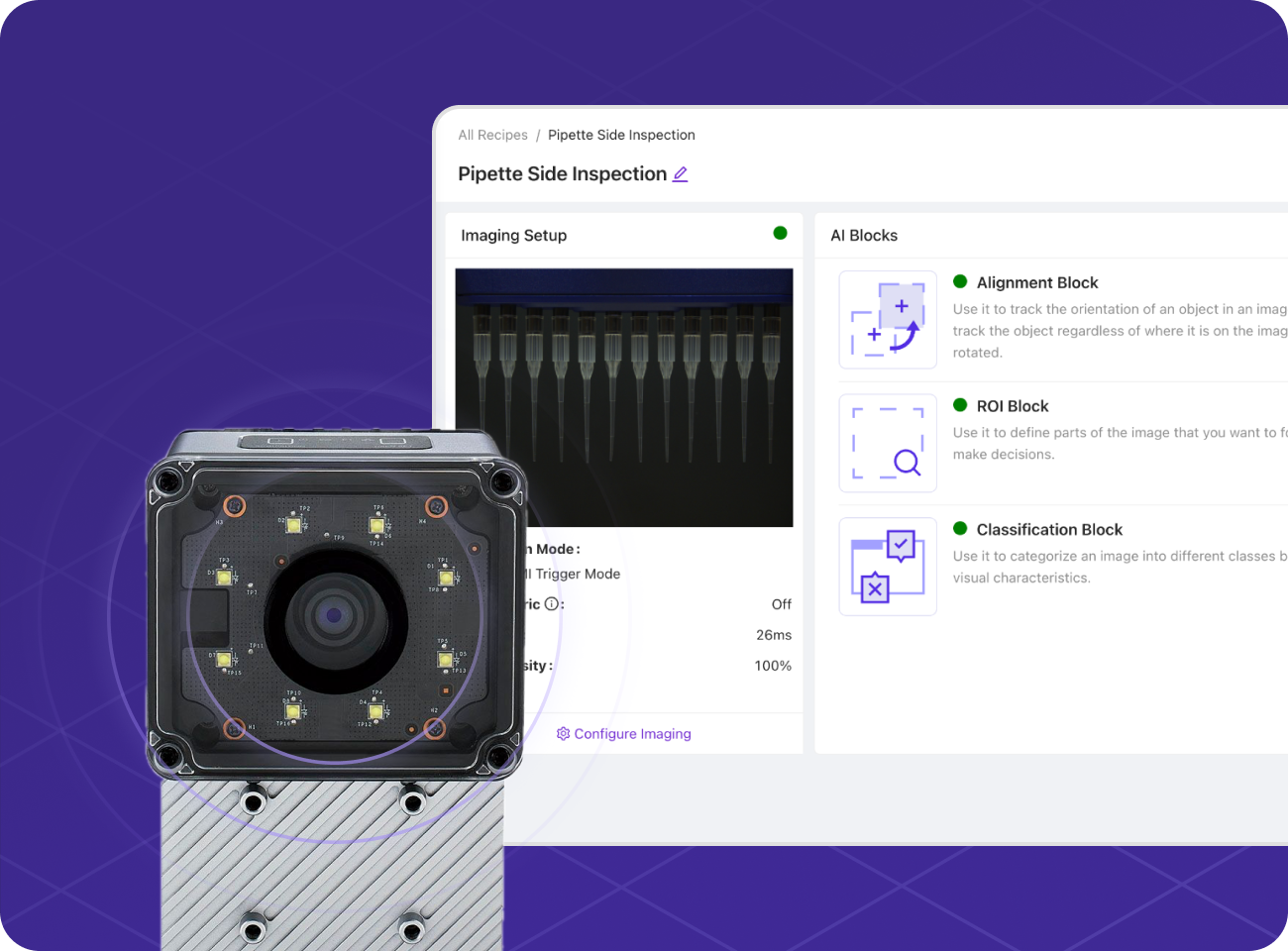

Image Acquisition Industrial cameras capture real-time images of the target object. The images obtained are two-dimensional, but by using multi-angle imaging and algorithms, three-dimensional information can be inferred.
     Feature Extraction and MatchingAlgorithms such as edge detection, corner detection, and template matching are used to extract unique features of the object (such as edges, corners, textures, etc.) and compare them to a pre-established model, thereby determining the relative position of the object.

Pose Estimation and Alignment Analysis Based on the matching results, the system can estimate the spatial position and pose (including rotation, tilt, etc.) of the object to ensure correct alignment during the production process. Common pose estimation methods include monocular or stereo vision algorithms based on calibration boards, and 3D reconstruction using the beam triangulation principle.

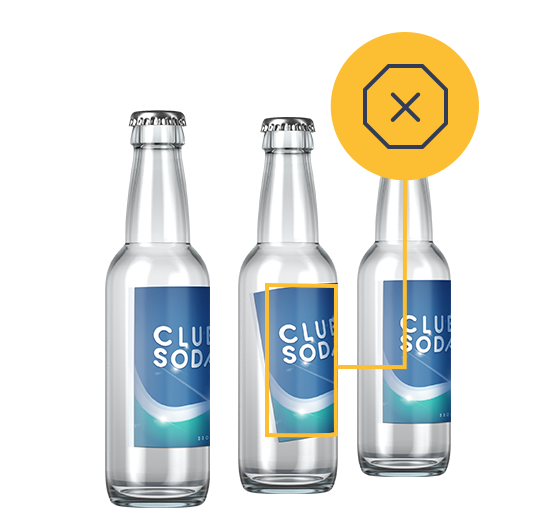

Error Feedback and AdjustmentThrough real-time monitoring and feedback control, the system can identify positional deviations of the object and promptly adjust equipment or production processes to ensure precise alignment, reducing the need for manual intervention.

Virtual Simulations Conduct comprehensive planning, testing, and optimization in a virtual environment to identify improvements and troubleshoot issues before implementing changes on the production floor.

Enhanced Optimization Utilize real-time data from the inspection system to refine and optimize manufacturing processes, ensuring higher precision and efficiency.

Predictive Maintenance Leverage digital twins to anticipate maintenance needs and prevent downtime by simulating different scenarios and assessing system performance.
