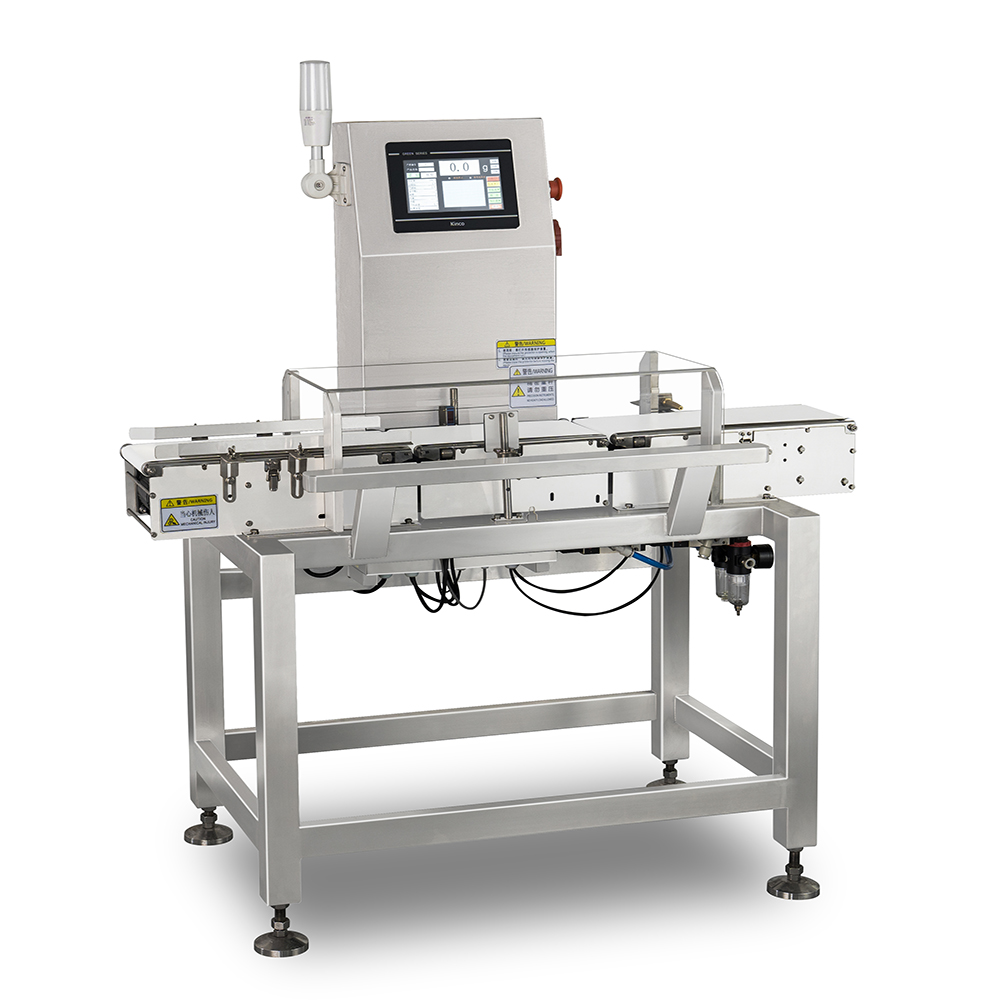

Automatic Pharmaceutical High Accuracy Conveyor Checkweigher

Histom | Automatic Pharmaceutical Conveyor Checkweigher ensures real-time weight verification, quality control, and compliance with industry standards.
Appliaction Features VideoSpecificationWarranty Info
Applications
Features
Video
Specification
ModelYCW-G100YCW-G150
Power SupplyAC220V±10% 50Hz (60Hz)
Rated Power0.35KW
Single Weighing Range≤50g
Weighing Accuracy Range±0.05g±0.1g~±0.3g
Graduation Value0.05g
Conveyor Speed20~90m/min
Weighing Material Dimensions≤100mm (L) * 90mm (W)≤200mm (L) * 140mm (W)
Material Tray Dimensions200mm (L) * 140mm (W)300mm (L) * 190mm (W)
Equipment Dimensions847mm (L) * 626mm (W) * 1300mm (H)1047mm (L) * 626mm (W) * 1300mm (H)

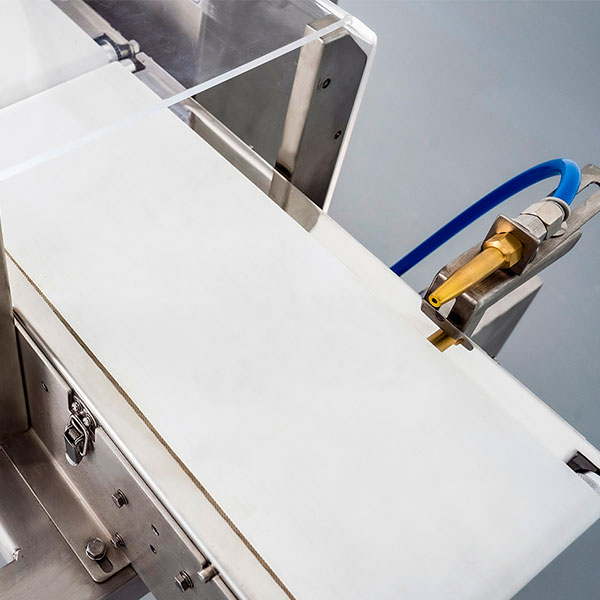

Rejection MethodAir Blowing Type
Control SystemHigh-speed A/D Sampling Controller
Preset Product Types100 types
Operating DirectionMachine Facing, Left In, Right Out
External Air Source0.6-1 Mpa
Air Pressure InterfaceΦ8mm
Operating Environment
Temperature: 0°C to 40°C, Humidity: 30% to 95%
Structural MaterialsSUS304 Stainless Steel
Warranty Info
  • 12-month quality warranty.
  • 24-month local fast replacement service for major electrical parts.
  • Comprehensive shipment services, including coordination of logistics, delivery tracking, and ensuring timely delivery to your location.
  • Technical support , Manual instructions, installation, and operation guides with delivery.
  • On-site setup, operation, and maintenance training as needed.

After the warranty period, we offer:

  • Lifelong maintenance services.
  • Spare parts support.
  • Operational training to ensure reliability.
  • Quick responses to any inquiries from our customer service team.
