Packaged Foods: Ensures the integrity of products like cheese, biscuits, and snacks.
Beverages: Suitable for inspecting bottled and canned drinks to detect contaminants.
Pharmaceuticals: Applicable in the pharmaceutical industry for detecting foreign objects in packaged medicines.

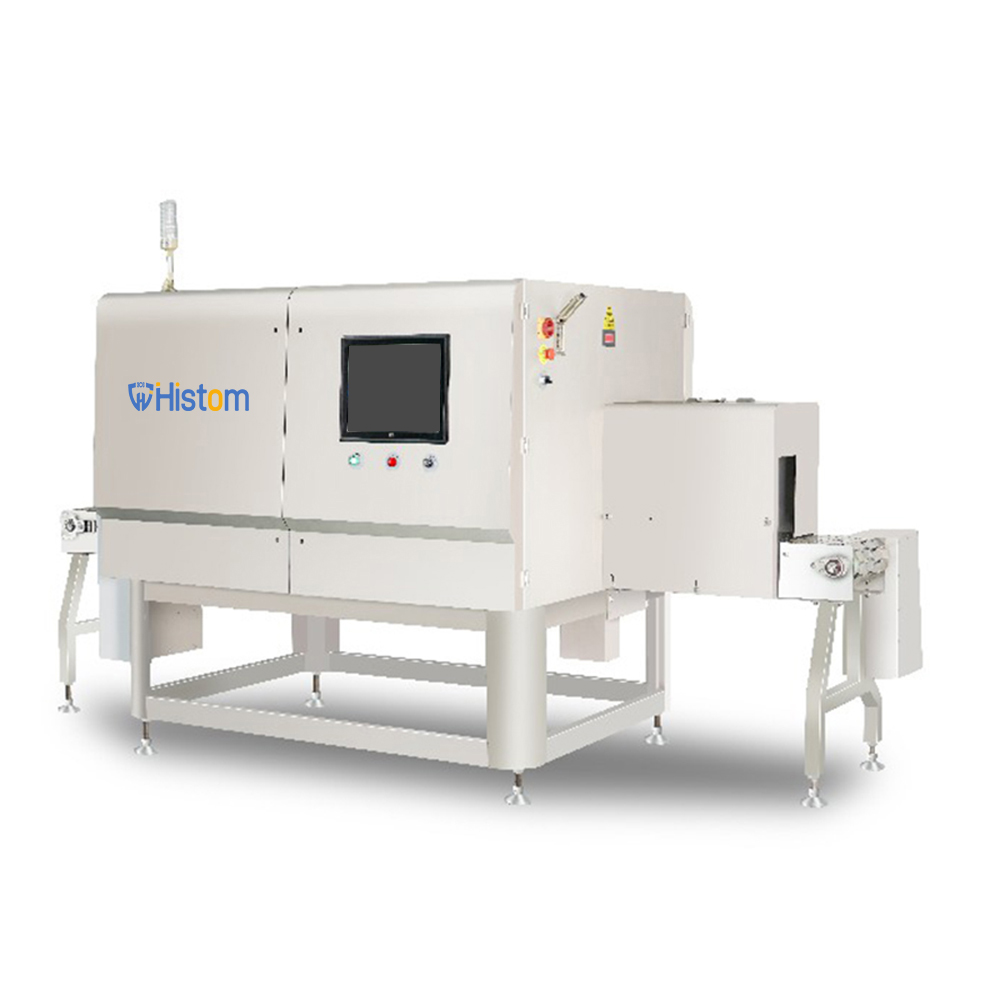

Implementing an Automated Dual Beam Side Scan Food X-Ray Inspection Machine enhances product safety, complies with stringent quality standards, and protects brand reputation by ensuring that only contaminant-free products reach consumers.
| Model Type | FXR-C80-2 | |
| X-ray Source | 40-120KV | |
| Maximum Detection Width | 180mm | |
| Maximum Detection Height | 250mm/350mm | |
| Conveyor Belt Speed | 10-100m/min | |
| Maximum Precision | Stainless Steel Ball | Ф0.3mm |
| Stainless Steel Wire | Ф0.2*2mm | |
| Ceramic | Ф1.0mm | |
| Glass | Ф1.0mm | |
| Operation Indication Method | 17-inch full-color touch screen, Windows OS | |
| X-ray Leakage | ＜1μSv/h (Complies with international Standards) | |
| Protection | Shielded Enclosure | |
| Supported Data Interfaces | LAN Port, USB Port | |
| Power Supply | AC220V±10% 50Hz (60Hz), 1.5KVA Max | |
| Reject Method | Audible and visual alarm / Shutdown / Rejection system | |
| Waterproof Rating | IP66 | |
| Operating Environment Temperature | Temperature: -10°C～40°C, Humidity: 30%～90% | |
| Structural Materials | SUS304 Stainless Steel | |
After the warranty period, we offer:
