Pharmaceutical Visual Inspection Machine
Improved Product Quality & Consistency

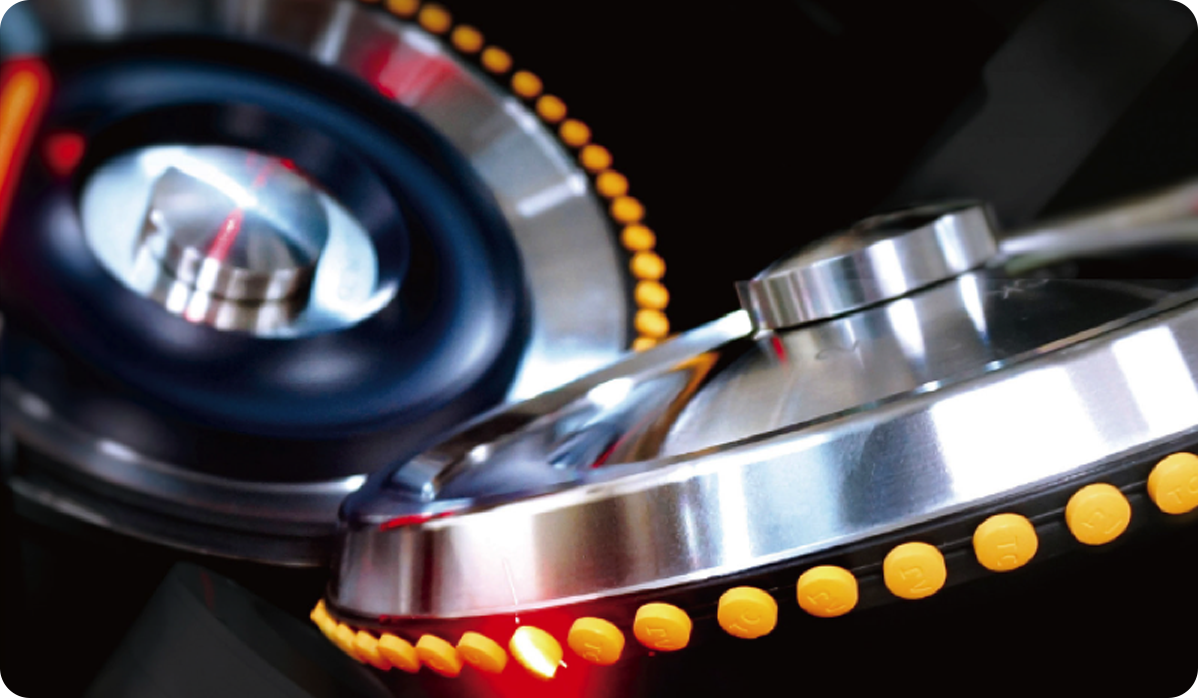

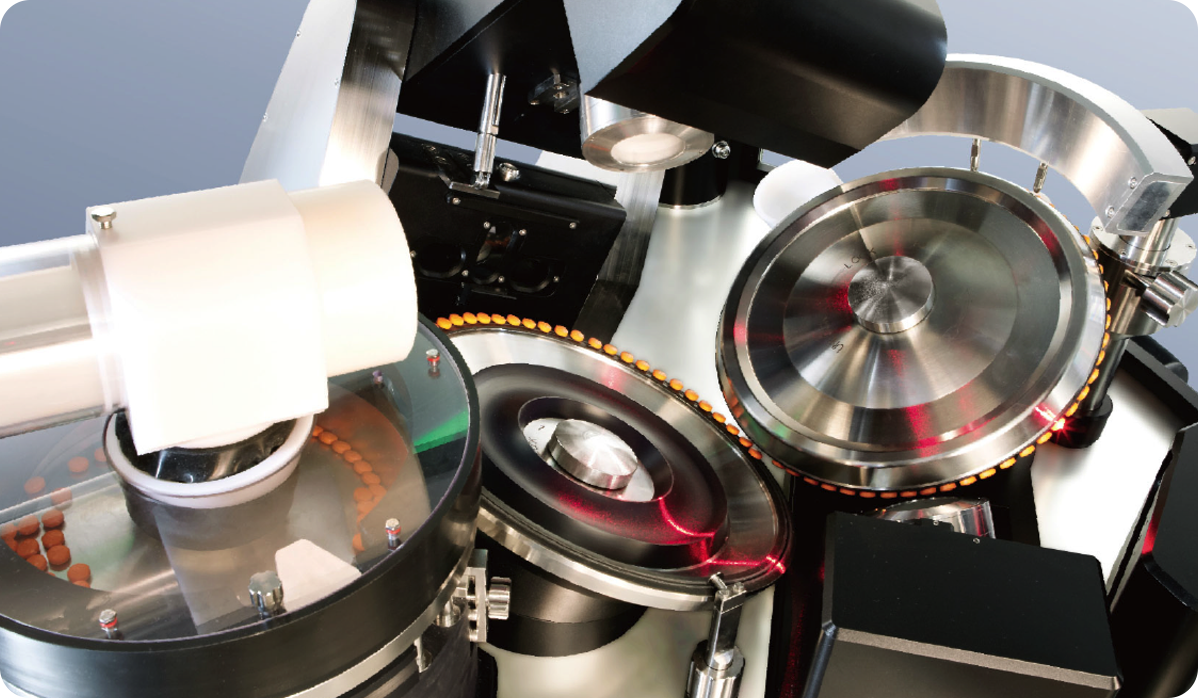

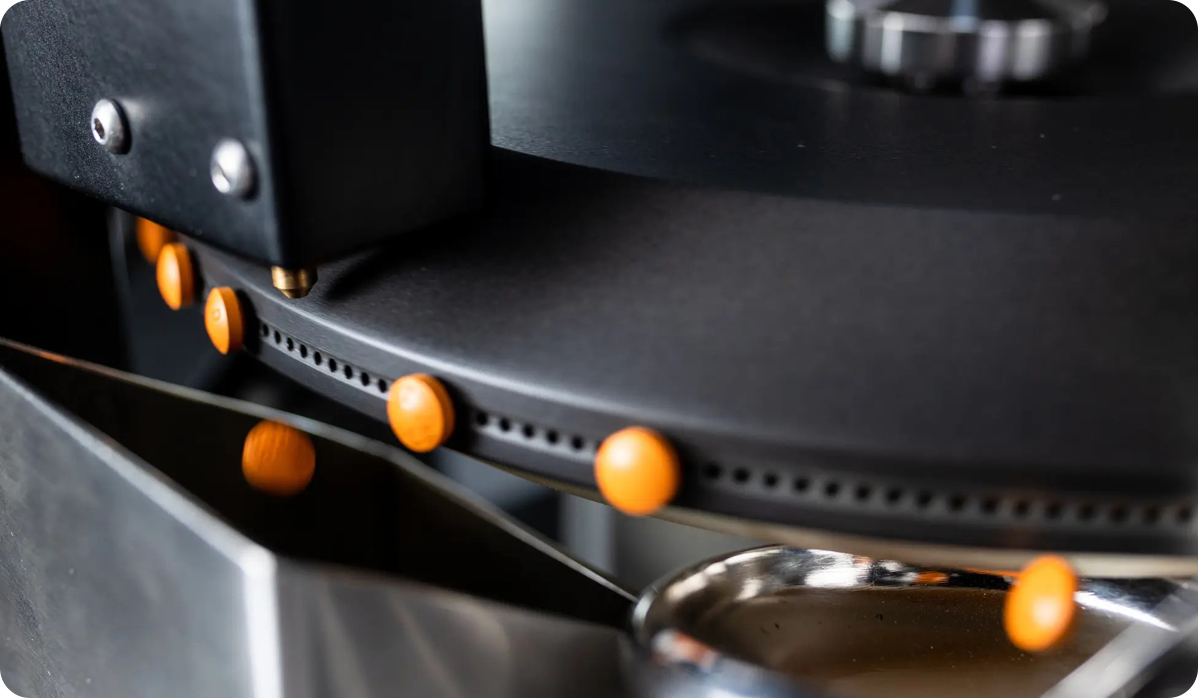

High-speed 3D vision inspection systems for tablet particles—a sophisticated, automated solution designed to inspect tablet particles with unprecedented speed, accuracy, and precision. This system uses advanced 3D vision technology to detect subtle defects, size variations, and surface irregularities on tablet particles during production, ensuring that only high-quality tablets reach the market.
Pharmaceutical Packaging with Smart Vision Inspection
Unlock the Future
Future-proof your pharmaceutical process by implementing the latest vision inspection systems. These cutting-edge solutions are built to meet evolving industry standards and regulatory changes, ensuring that your pharmaceutical remains compliant and defect-free.
Surface Mapping and 3D ImagingThe system integrates 3D surface mapping into the inspection process. By capturing the height and contour of each tablet, the system identifies even the most subtle surface deviations through contour mapping, which measures changes in height or texture, and 3D defect detection, which precisely identifies deformities like surface warping or partial tablet formations.

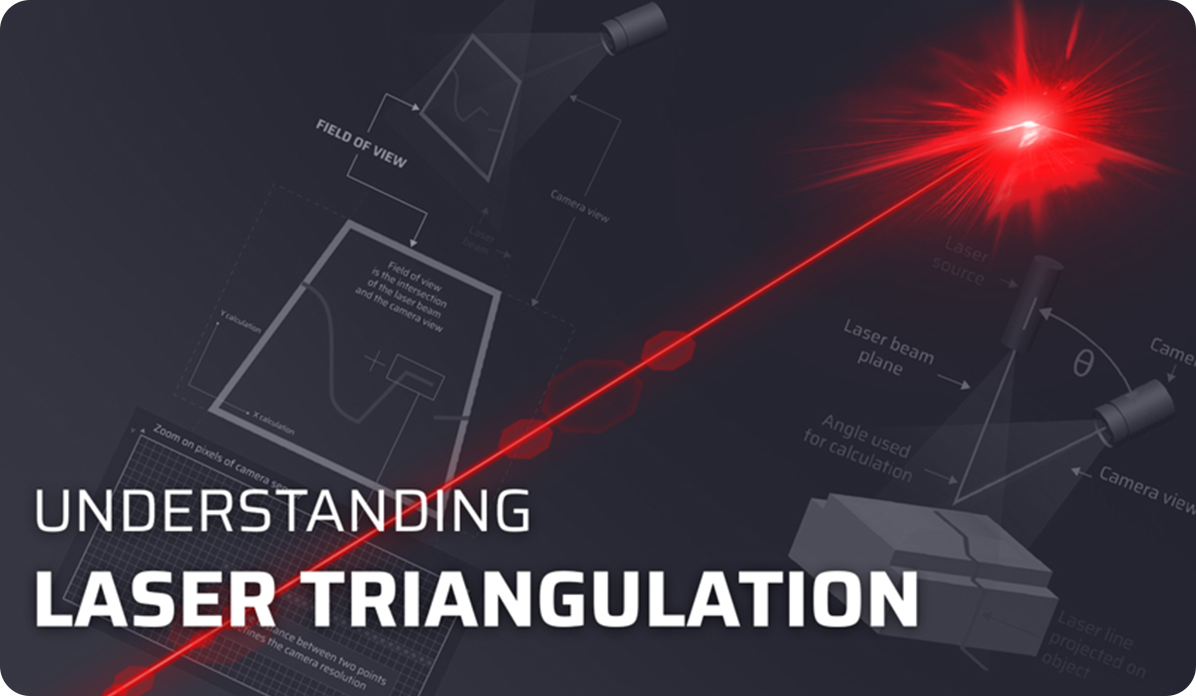

Laser TriangulationLaser triangulation is one of the most widely used techniques in 3D vision systems. A laser beam is projected onto the tablet particle, and the reflection is captured by a high-speed camera. The position of the reflected laser spot helps calculate the exact 3D coordinates of each point on the tablet’s surface. High-resolution depth information, allowing for precise measurements of the tablet’s geometry, surface features, and potential defects.
Structured Light ScanningStructured light systems use a series of light patterns, stripes, or grids, which are projected onto the tablet surface. As the light pattern deforms when interacting with the tablet’s contours, a high-speed camera captures the changes in the light pattern. Using these distortions, the system calculates the 3D shape of the tablet with high accuracy. This technique excels in capturing detailed surface textures and fine features that are critical for identifying manufacturing defects.
Stereo VisionStereo vision involves using two or more cameras positioned at different angles to capture images of the tablet particle. By comparing the disparity between the images, the system reconstructs the 3D structure of the tablet. The method is highly effective for obtaining detailed depth information of the tablet’s shape, particularly in cases where laser or structured light scanning might struggle with glossy or reflective surfaces.
Increased Compliance with Regulatory Standards
Protect Against Costly Recalls
Pharmaceutical products must adhere to strict regulations regarding product quality and safety. Our system helps manufacturers meet these requirements by providing a reliable method for detecting surface defects that could affect tablet quality. The comprehensive data logging feature also supports compliance with industry standards, such as those set by the FDA and EMA.
Future-Proof Technology
With enhanced throughput, reduced costs, and improved patient safety, this automated solution is a game-changer for tablet manufacturing. Contact us today to learn more about how our 3D vision inspection system can optimize your tablet production process and elevate your product quality.
